TRX 5800

Multi-Purpose
Reversible Tractor

Untitled design (29).png
Untitled design (31).png

YANMAR Tier 3A Engine

up to 50 hp

32 speed Sync Gearbox

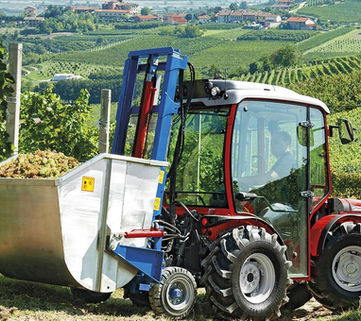

The TRX 5800 is a 50 hp multi-purpose tractor with a reversible driving position, offering versatility for various tasks, from orchards and vineyards to snow clearing and urban maintenance. Its 16+16 mechanical transmission with synchro shuttle makes it highly manoeuvrable in confined spaces, with a short wheelbase and tight turning radius. It ensures stability and constant traction on steep gradients. With a lifting capacity of 2.2 tons, it can be equipped with oversized lifting arms for more demanding tasks. Its ergonomic design, advanced instrument cluster, and reversible driving position enhance operator comfort, increasing efficiency while reducing fuel consumption. The TRX 5800 excels in agricultural, civic, and industrial applications.

  • Synchronised 32 speed gear box: 16 forward
    and 16 reverse with synchronised inverter

  • Tight turning radius and short wheelbase for
    manoeuvrability

  • 2.2 tons lifting capacity with optional
    oversized lifting arms


  • Hydraulic system with Load Sensing and rear hydraulic remotes

  • PTO 540/540e with electro-hydraulic engagement

  • 3-point linkage cat.1 with power lift

  • Hydraulic rear oil bath disc brakes with independent steering brakes

  • Digital dashboard for operational data

  • Platform chassis on Silent-block for comfort

  • Upgraded hydraulic pump with flow rates up to 43 l/min

  • Front and rear towing devices

Engine

YANMAR Direct injection diesel common rail

Turbo 4 Cylinders - 16 Valves - 2091 cc

Stage 5 - Power 37.9 kW / 51.5 hp - 2600 rpm

Max torque 170 Nm at 1690 rpm

Transmission

Synchronised transmission gearbox with 32 speeds

16 fwd +16 rev, and synchronised shuttle reverser

Chassis

ACTIOTM integral oscillating frame

RGSTM reversible drive system

Steering wheels
4 equal wheel drive

Horizontal rear final drives



PTO (shaft)

Rear, independent 540/540E rpm with progressive electro-hydraulic

engagement; synchronised groundspeed

More specs in brochure.
